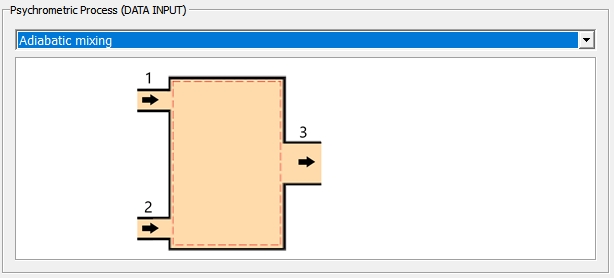

# Análisis 6: Mezcla adiabática de dos corrientes

{% hint style="info" %}

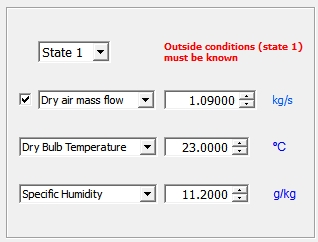

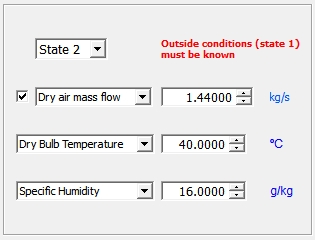

Una mezcla adiabática de dos corrientes. Corriente-A de aire (11.2 g/kg aire seco) 1.09 kg/s a 23 °C, y corriente-B de 1.440 kg/s a 40 °C y humedad específica de 16 g/kg aire seco. Determinar:

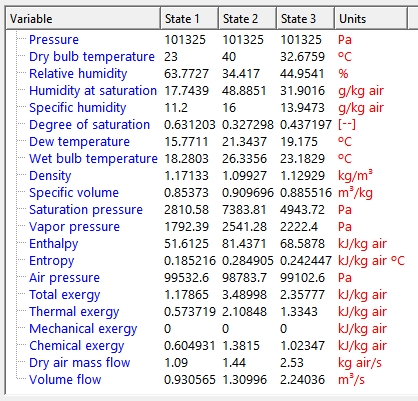

* Humedad relativa a la salida
* Irreversibilidad del proceso

Si posteriormente, se realiza un calentamiento sensible hasta alcanzar la temperatura de 35 °C, determinar la humedad relativa a la salida y el calor sensible del proceso de calentamiento, en kW.
{% endhint %}

![](https://thermosuite.com/manual2/6/media/image2.png)

![](https://thermosuite.com/manual2/6/media/image3.png)

![](https://thermosuite.com/manual2/6/media/image4.png)

![](https://thermosuite.com/manual2/6/media/image5.png)

![](https://thermosuite.com/manual2/6/media/image6.png)

![](https://thermosuite.com/manual2/6/media/image7.png)

Balance energético:

![](https://thermosuite.com/manual2/6/media/image8.png)

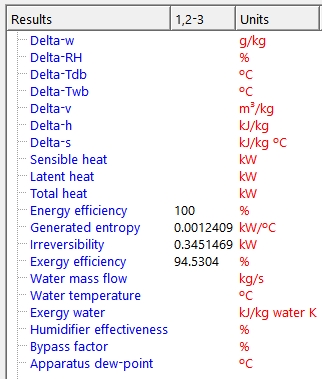

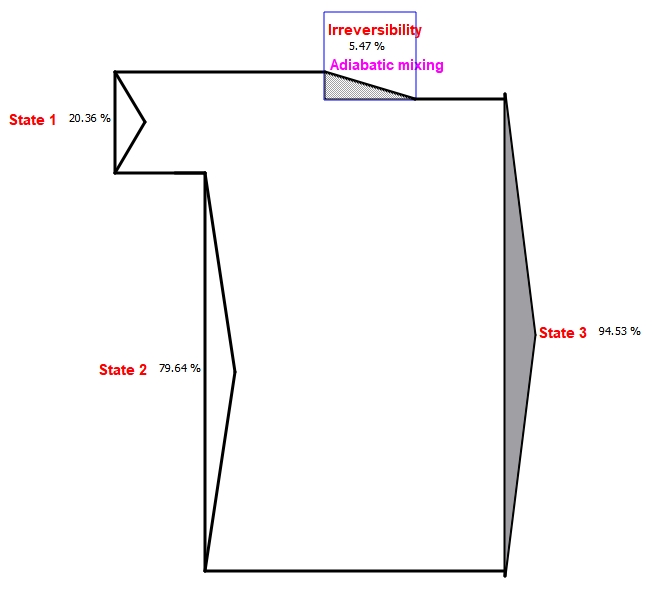

Balance de exergía:

![](https://thermosuite.com/manual2/6/media/image9.png)


---
