# Análisis 91: Determinación de la fórmula química del combustible

{% hint style="info" %}

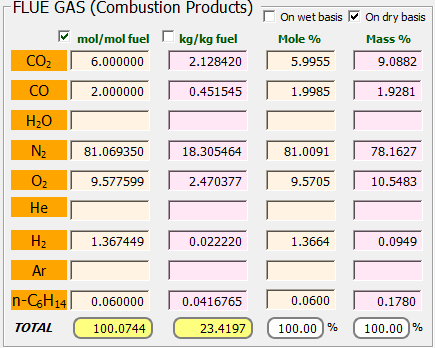

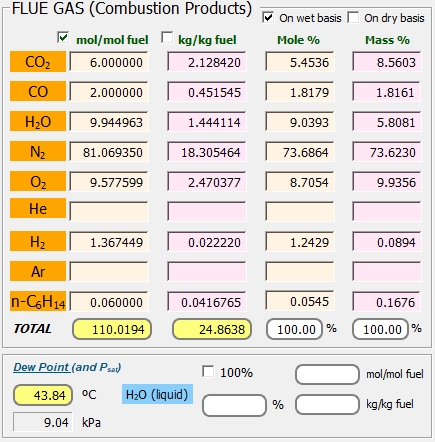

Un motor genera la siguiente composición volumétrica de productos de combustión en base seca:

* O2    --> 9.5776 %
* CO<sub>2</sub>  --> 6.00 %
* CO    --> 2.00 %
* C<sub>6</sub>H<sub>14</sub> (inquemados) --> 600 ppm
* N<sub>2</sub> y H<sub>2</sub> el resto

Sabiendo que los productos de combustión se encuentran a 1200 ºC. Obtener:

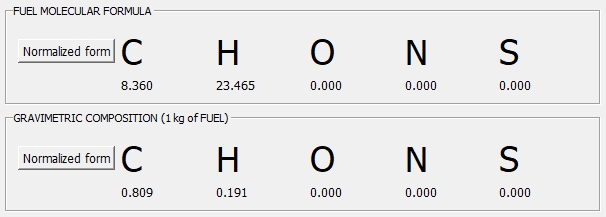

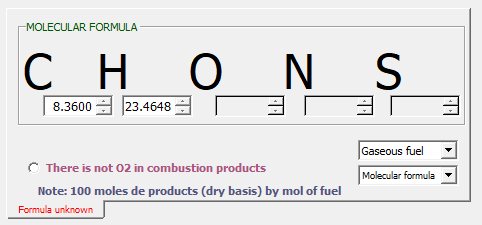

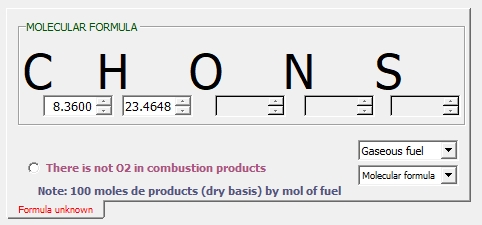

1. La fórmula química del combustible (considerando que solo está compuesta de C e H)

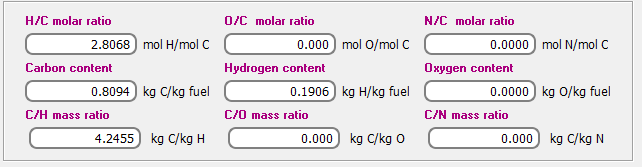

2. La relación molar H/C del combustible
3. Coeficiente de exceso de aire
4. La relación gravimétrica aire/combustible
5. La relación gravimétrica estequiométrica aire/combustible

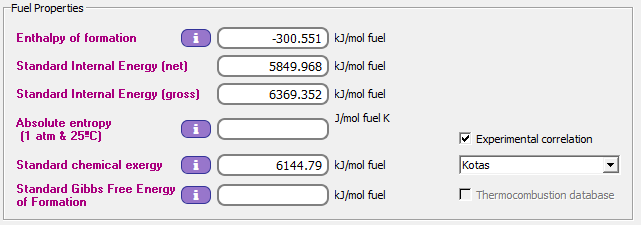

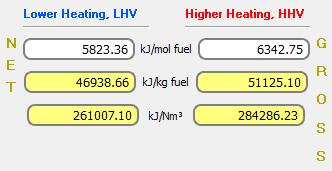

6. Poderes caloríficos del combustible

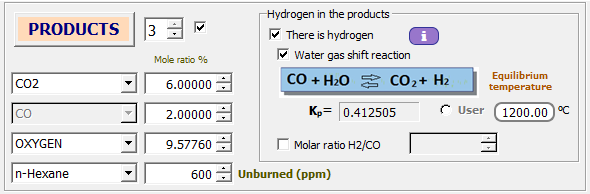

7. La constante de equilibrio
8. Número de octano y de cetano

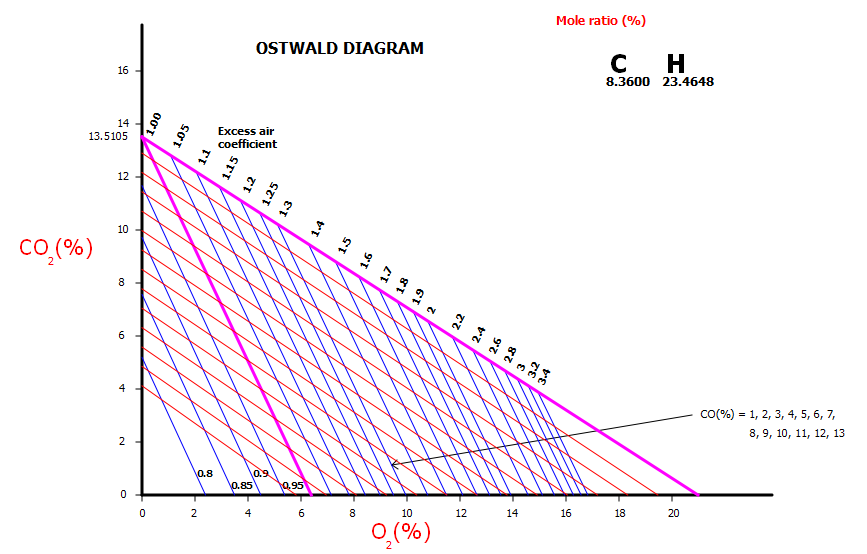

9. Diagrama de Ostwald

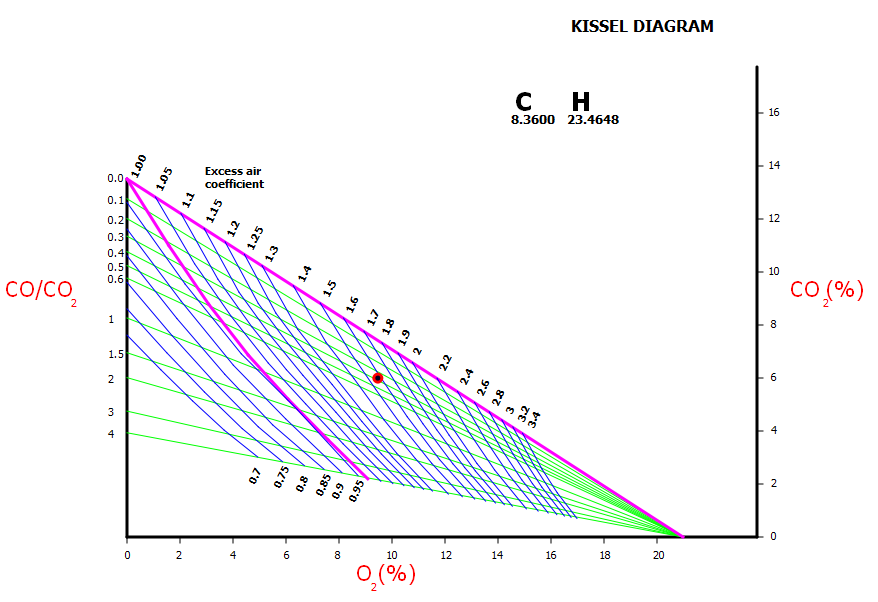

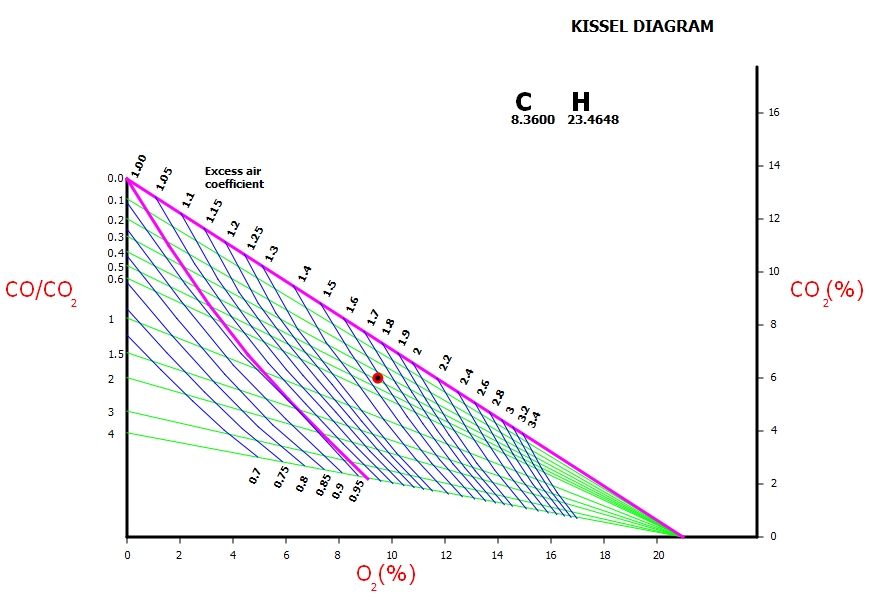

10. Diagrama de Kissel
    {% endhint %}

![](https://thermosuite.com/manual/91/media/image2.png) ![](https://thermosuite.com/manual/91/media/image3.png)

![](https://thermosuite.com/manual/91/media/image4.png)

![](https://thermosuite.com/manual/91/media/image5.png)

![](https://thermosuite.com/manual/91/media/image6.png) ![](https://thermosuite.com/manual/91/media/image7.png) ![](https://thermosuite.com/manual/91/media/image8.png)

![](https://thermosuite.com/manual/91/media/image9.png)

![](https://thermosuite.com/manual/91/media/image10.png)

![](https://thermosuite.com/manual/91/media/image11.png)

![](https://thermosuite.com/manual/91/media/image12.png)

![](https://thermosuite.com/manual/91/media/image13.png)

![](https://thermosuite.com/manual/91/media/image14.png) ![](https://thermosuite.com/manual/91/media/image15.png)

![](https://thermosuite.com/manual/91/media/image16.png)

![](https://thermosuite.com/manual/91/media/image17.png)

![](https://thermosuite.com/manual/91/media/image18.png)

![](https://thermosuite.com/manual/91/media/image19.png)

![](https://thermosuite.com/manual/91/media/image20.png)

![](https://thermosuite.com/manual/91/media/image21.png)

![](https://thermosuite.com/manual/91/media/image22.png)

![](https://thermosuite.com/manual/91/media/image23.png)

![](https://thermosuite.com/manual/91/media/image24.png)

![](https://thermosuite.com/manual/91/media/image25.png)


---
