# Análisis 86: Productos en base húmeda con hidrógeno inquemado

{% hint style="info" %}
Una mezcla liquida volumétrica de hidrocarburos:

* Ciclohexano --> 50 %
* n-heptano    --> 30 %

combustiona dando lugar a la siguiente composición de productos de combustión en base húmeda:

* CO<sub>2</sub> --> 7.0 %
* H<sub>2</sub>O --> 7.0 %

Sabiendo que la temperatura de los productos de combustión alcanzada es de 1000 K, que hay hidrógeno en los productos, y que los reactivos entran a la cámara de combustión a 25 ºC, obtener:

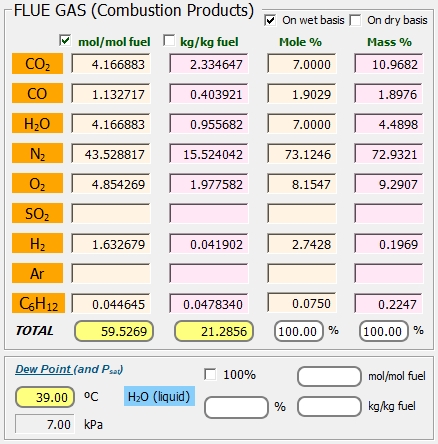

1. Productos de la combustión en base húmeda y seca
2. Coeficiente de exceso de aire empleado

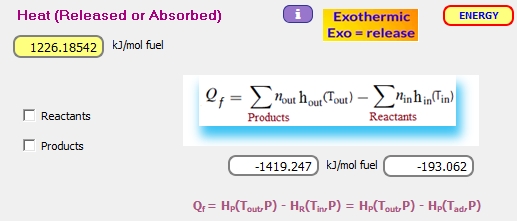

3. Calor intercambiado con el exterior

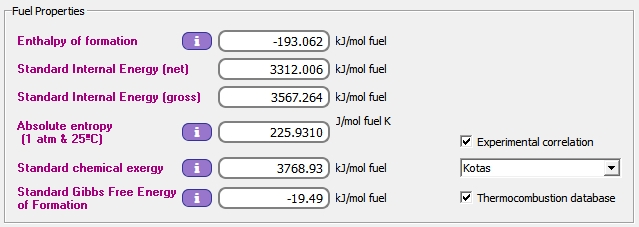

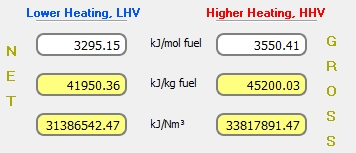

4. Poderes caloríficos del combustible
   {% endhint %}

![](https://thermosuite.com/manual/86/media/image2.png) ![](https://thermosuite.com/manual/86/media/image3.png)

<figure><img src="/files/juLOuBDKh3mUICGQfz83" alt=""><figcaption></figcaption></figure>

![](https://thermosuite.com/manual/86/media/image4.png)

![](https://thermosuite.com/manual/86/media/image5.png)

![](https://thermosuite.com/manual/86/media/image6.png)

Este tipo de reacción química se caracteriza por la presencia de sustancias combustibles o también llamados inquemados en los humos o gases de combustión. Estas sustancias generalmente son carbono como hollín, CO, H<sub>2</sub> y también pueden aparecer pequeñas cantidades de los hidrocarburos que se utilizan como combustibles.

![](https://thermosuite.com/manual/86/media/image7.png)

![](https://thermosuite.com/manual/86/media/image8.png)

![](https://thermosuite.com/manual/86/media/image9.png) ![](https://thermosuite.com/manual/86/media/image10.png) ![](https://thermosuite.com/manual/86/media/image11.png)

![](https://thermosuite.com/manual/86/media/image12.png)

![](https://thermosuite.com/manual/86/media/image13.png)

![](https://thermosuite.com/manual/86/media/image14.png)

![](https://thermosuite.com/manual/86/media/image15.png)

![](https://thermosuite.com/manual/86/media/image16.png) ![](https://thermosuite.com/manual/86/media/image17.png)
