# Análisis 85: Productos en base húmeda con hidrógeno

{% hint style="info" %}
Una mezcla gaseosa volumétrica de hidrocarburos:

* Metano    --> 85 %
* i-butano   --> 10 %
* Nitrógeno --> 3 %

combustiona dando lugar a la siguiente composición de productos de combustión en base húmeda:

* CO<sub>2</sub> --> 9 %
* H<sub>2</sub>    -->3 %
* CO    --> 2 %

Obtener:

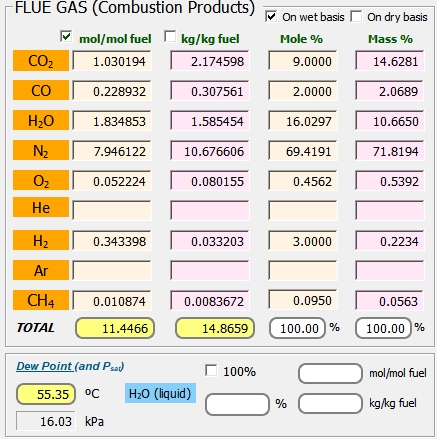

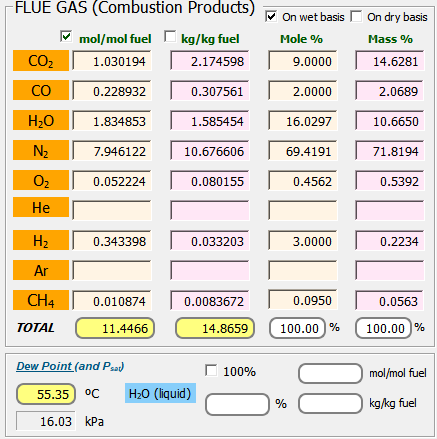

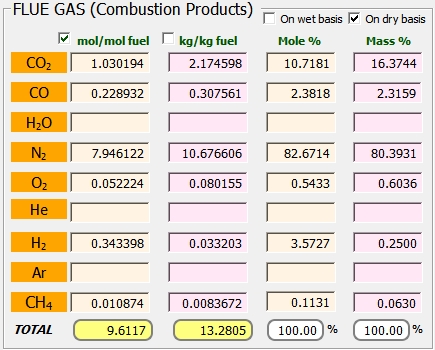

1. Productos de la combustión en base húmeda y seca
2. Coeficiente de exceso de aire empleado
3. Relación aire/combustible en masa

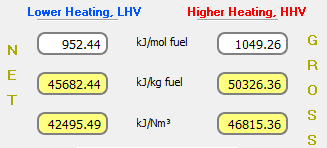

4. Poderes caloríficos del combustible

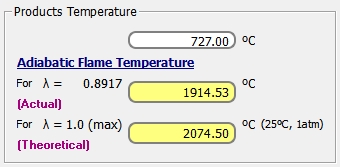

5. Temperatura adiabática de la llama

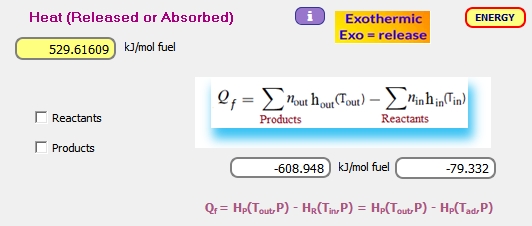

6. Calor de combustión
   {% endhint %}

![](https://thermosuite.com/manual/85/media/image2.png) ![](https://thermosuite.com/manual/85/media/image3.png)

<figure><img src="/files/FHyo2xbGhSE7w1Y5B8Fi" alt=""><figcaption></figcaption></figure>

![](https://thermosuite.com/manual/85/media/image4.png)

![](https://thermosuite.com/manual/85/media/image5.png)

![](https://thermosuite.com/manual/85/media/image6.png)

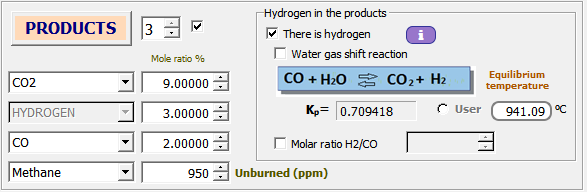

Conocidas las fracciones molares de tres compuestos (pudiéndose añadir la del inquemado), ThermoCombustion obtiene la temperatura de equilibrio de la reacción "gas shift", **941** ºC (temperatura de los productos de combustión) y el coeficiente de exceso de aire, λ=**0.89166**.

![](https://thermosuite.com/manual/85/media/image7.png)

![](https://thermosuite.com/manual/85/media/image8.png)

![](https://thermosuite.com/manual/85/media/image9.png)

![](https://thermosuite.com/manual/85/media/image10.png) ![](https://thermosuite.com/manual/85/media/image11.png)

![](https://thermosuite.com/manual/85/media/image12.png)

![](https://thermosuite.com/manual/85/media/image13.png)

![](https://thermosuite.com/manual/85/media/image14.png)

![](https://thermosuite.com/manual/85/media/image15.png)


---
