# Análisis 84: Combustión de Orsat con hidrógeno inquemado

{% hint style="info" %}
Una mezcla gaseosa volumétrica de hidrocarburos:

* n-butano --> 65 %
* Etileno     --> 30 %

combustiona dando lugar a la siguiente composición de productos de combustión en base seca:

* CO<sub>2</sub> --> 10 %
* H<sub>2</sub>    --> 3 %

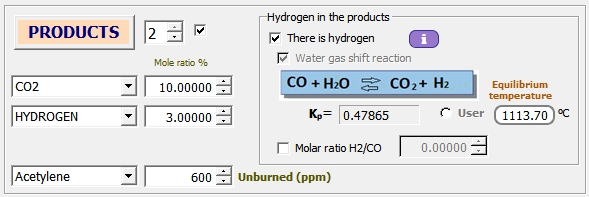

Sabiendo que la temperatura de los productos de combustión alcanzada es de 1113.7 ºC, que hay hidrógeno en los productos, y que los reactivos entran a la cámara de combustión a 25 ºC, obtener:

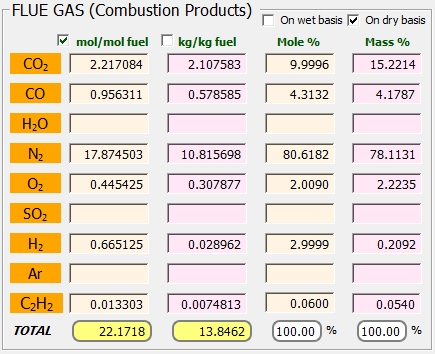

1. Productos de la combustión en base húmeda y seca
2. Coeficiente de exceso de aire empleado

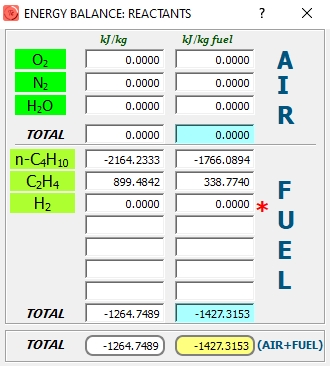

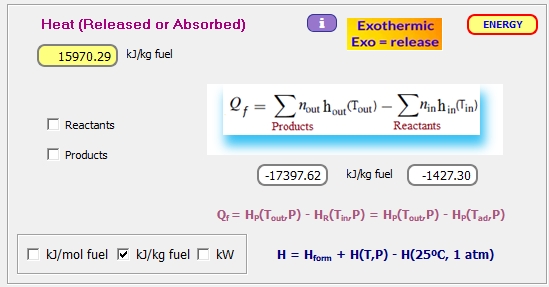

3. Calor intercambiado con el exterior en kJ/kg fuel

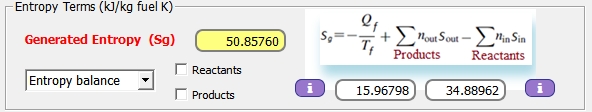

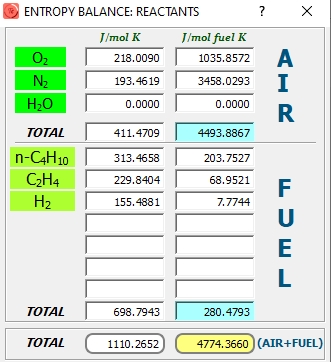

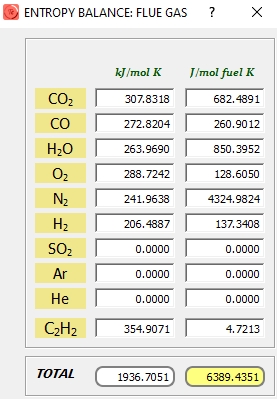

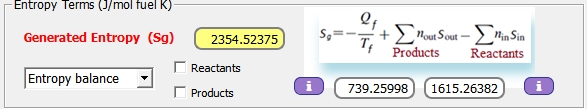

4. Entropía generada
   {% endhint %}

![](https://thermosuite.com/manual/84/media/image2.png) ![](https://thermosuite.com/manual/84/media/image3.png)

<figure><img src="/files/DwnpxqagEP5nZCeEQlmJ" alt=""><figcaption></figcaption></figure>

![](https://thermosuite.com/manual/84/media/image4.png)

![](https://thermosuite.com/manual/84/media/image5.png)

![](https://thermosuite.com/manual/84/media/image6.png)

![](https://thermosuite.com/manual/84/media/image7.png)

Conocidas las fracciones molares de dos compuestos (pudiéndose añadir la del inquemado), además de la temperatura de los productos de combustión, ***ThermoCombustion*** obtiene el coeficiente de exceso de aire, λ=**0.92261**.

![](https://thermosuite.com/manual/84/media/image8.png)

![](https://thermosuite.com/manual/84/media/image9.png)

![](https://thermosuite.com/manual/84/media/image10.png)

![](https://thermosuite.com/manual/84/media/image11.png) ![](https://thermosuite.com/manual/84/media/image12.png) ![](https://thermosuite.com/manual/84/media/image13.png)

![](https://thermosuite.com/manual/84/media/image14.png)

![](https://thermosuite.com/manual/84/media/image15.png) ![Tabla,](https://thermosuite.com/manual/84/media/image16.png)

![](https://thermosuite.com/manual/84/media/image17.png)

![](https://thermosuite.com/manual/84/media/image18.png)

![](https://thermosuite.com/manual/84/media/image19.png) ![](https://thermosuite.com/manual/84/media/image20.png)


---
