# Análisis 83: Combustión de Orsat con inquemados (hidrógeno e inquemado)

{% hint style="info" %}

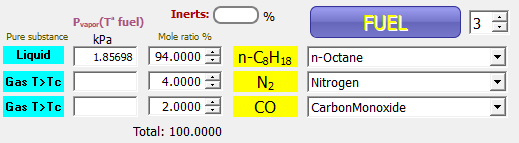

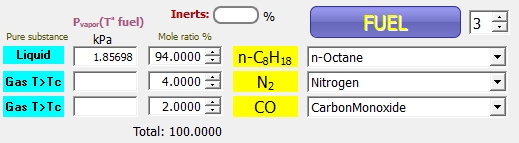

Una mezcla gaseosa volumétrica de hidrocarburos:

* n-octano  --> 94 %
* Nitrógeno --> 4 %

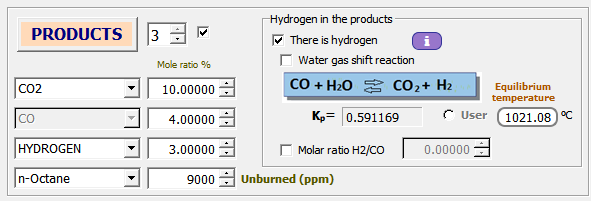

Combustiona dando lugar a la siguiente composición de productos de combustión en base seca:

* CO<sub>2</sub> --> 10 %
* CO   --> 4 %
* H<sub>2</sub>    --> 3 %
* n-octano (inquemados) 9000 ppm

Sabiendo que hay hidrógeno en los productos, y que los reactivos entran a la cámara de combustión a 25 ºC:

Obtener:

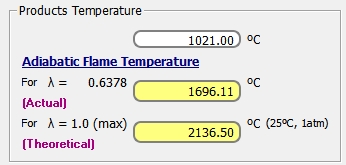

1. Temperatura de los productos en equilibrio químico

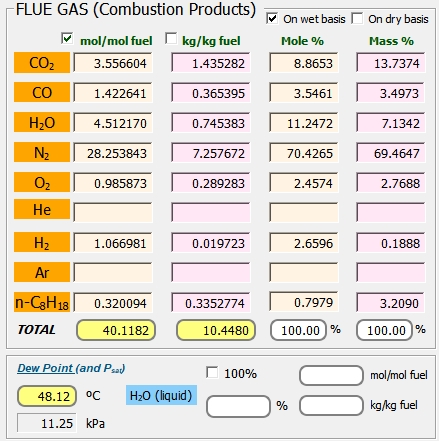

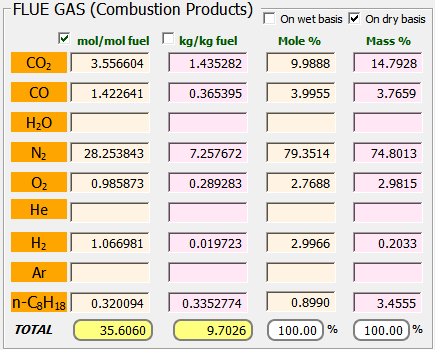

2. Productos de la combustión en base húmeda y seca
3. Coeficiente de exceso de aire empleado

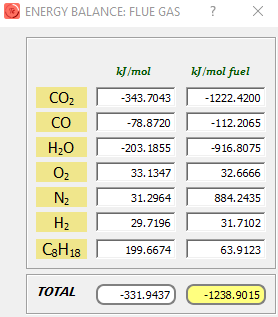

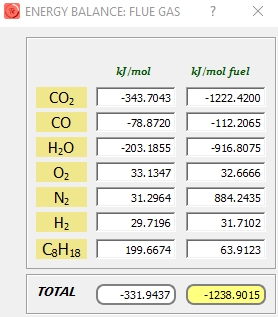

4. Calor intercambiado con el exterior en kJ/mol fuel

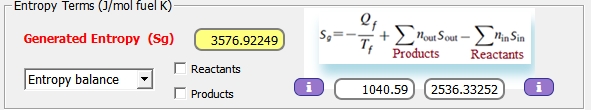

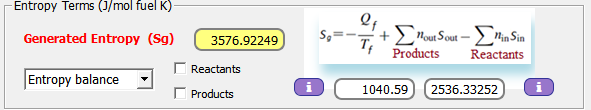

5. Entropía generada
   {% endhint %}

![](https://thermosuite.com/manual/83/media/image2.png) ![](https://thermosuite.com/manual/83/media/image3.png)

<figure><img src="/files/aj56oqxS4R5EN2ObIfMq" alt=""><figcaption></figcaption></figure>

![](https://thermosuite.com/manual/83/media/image4.png)

![](https://thermosuite.com/manual/83/media/image5.png)

![](https://thermosuite.com/manual/83/media/image6.png)

![](https://thermosuite.com/manual/83/media/image7.png)

![](https://thermosuite.com/manual/83/media/image8.png)

![](https://thermosuite.com/manual/83/media/image9.png) ![](https://thermosuite.com/manual/83/media/image10.png) ![](https://thermosuite.com/manual/83/media/image11.png)

![](https://thermosuite.com/manual/83/media/image12.png)

![](https://thermosuite.com/manual/83/media/image13.png)

![](https://thermosuite.com/manual/83/media/image14.png)

![](https://thermosuite.com/manual/83/media/image15.png) ![](https://thermosuite.com/manual/83/media/image16.png)

![](https://thermosuite.com/manual/83/media/image17.png)

Estado termodinámico del octano:

Al definir el usuario que se trata de una mezcla de gases, el octano (aunque aparezca indicado que su estado es líquido, dentro del tanque de combustible) es considerado que se encuentra en estado gaseoso.

![](https://thermosuite.com/manual/83/media/image18.png)

![](https://thermosuite.com/manual/83/media/image19.png)

![](https://thermosuite.com/manual/83/media/image20.png)

![](https://thermosuite.com/manual/83/media/image21.png)

![](https://thermosuite.com/manual/83/media/image22.png)

![](https://thermosuite.com/manual/83/media/image23.png)

![](https://thermosuite.com/manual/83/media/image24.png) ![](https://thermosuite.com/manual/83/media/image25.png)

![](https://thermosuite.com/manual/83/media/image26.png)


---
