# Análisis 32: Análisis de sensibilidad. Metano y metanol

{% hint style="info" %}
Estudiar el efecto de la temperatura de los productos de combustión en el calor de intercambiado con el exterior para los siguientes combustibles: Metano y metanol. La combustión es completa y el coeficiente de exceso de aire es del 50 %. Aire y combustible entran en condiciones estándar.

Analizar la disociación química de los productos de combustión.
{% endhint %}

![](https://thermosuite.com/manual/32/media/image2.png) ![](https://thermosuite.com/manual/32/media/image3.png)

<figure><img src="/files/t1Qr7hxT4s9agPDbplvI" alt=""><figcaption></figcaption></figure>

![Chat o mensaje de](https://thermosuite.com/manual/32/media/image4.png)

![](https://thermosuite.com/manual/32/media/image5.png)

<figure><img src="/files/OuCdBxInKbJWumk82DLM" alt=""><figcaption></figcaption></figure>

![](https://thermosuite.com/manual/32/media/image6.png)

![](https://thermosuite.com/manual/32/media/image7.png) ![](https://thermosuite.com/manual/32/media/image8.png) ![](https://thermosuite.com/manual/32/media/image9.png)

![](https://thermosuite.com/manual/32/media/image10.png)

![](https://thermosuite.com/manual/32/media/image11.png)

![](https://thermosuite.com/manual/32/media/image12.png)

![](https://thermosuite.com/manual/32/media/image13.png) (Para el CH~~4~~ con λ=1.5)

![](https://thermosuite.com/manual/32/media/image14.png) (Para el CH~~3~~OH con λ=1.5)

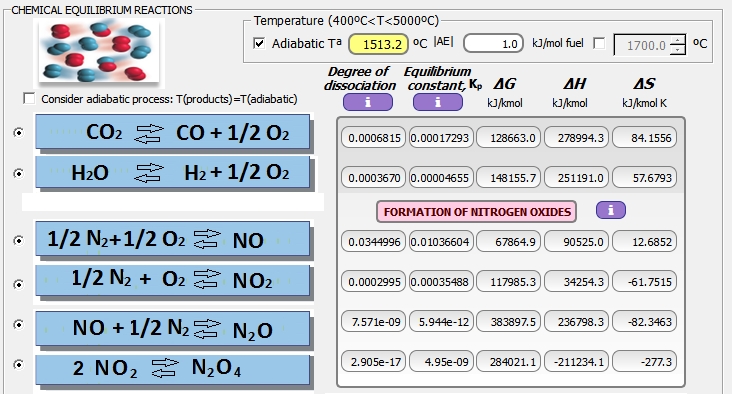

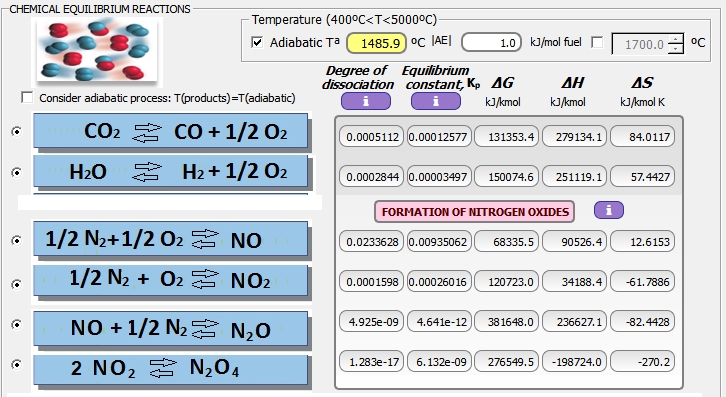

El efecto de la disociación química:

\[METANOL (CH<sub>3</sub>OH)]

![](https://thermosuite.com/manual/32/media/image15.png)

![](https://thermosuite.com/manual/32/media/image16.png)

\[METANO (CH<sub>4</sub>)]

![](https://thermosuite.com/manual/32/media/image17.png)

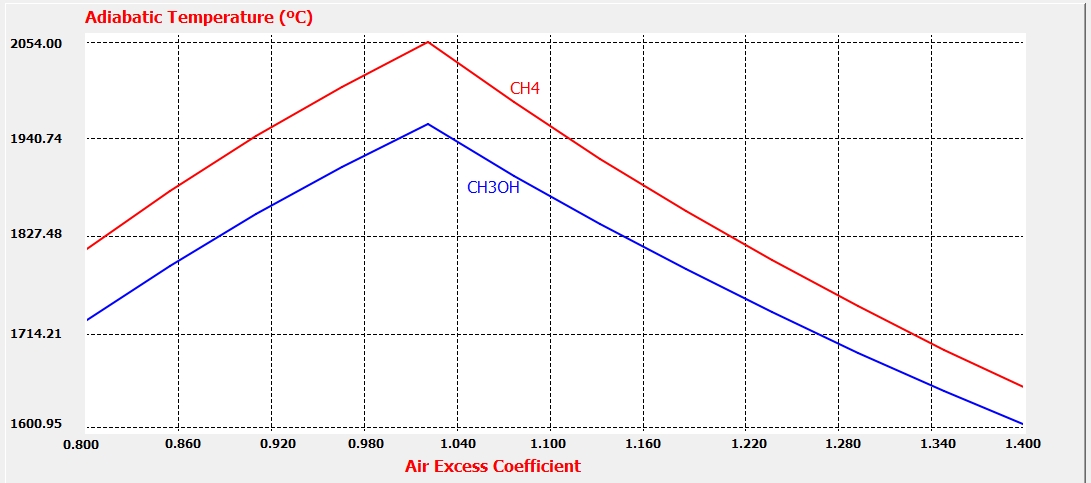

Verificamos que la disociación de los productos decrece levemente la temperatura adiabática de la llama.

![](https://thermosuite.com/manual/32/media/image18.png)

Fijando la temperatura de los productos a 1000 ºC.

![](https://thermosuite.com/manual/32/media/image19.png)

![](https://thermosuite.com/manual/32/media/image20.png)

![](https://thermosuite.com/manual/32/media/image21.png)

![](https://thermosuite.com/manual/32/media/image22.png)


---
