# Análisis 124: Reactor adiabático conociendo moles de reactivos

{% hint style="info" %}

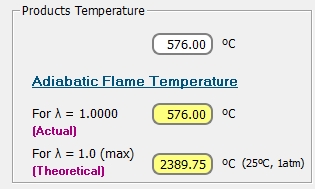

1 kmol de CO, 0.5 kmoles de O<sub>2</sub> y 1.88 kmoles de N<sub>2</sub> entran en un reactor adiabático, generando CO<sub>2</sub> y otros productos. El coeficiente de exceso de aire es la unidad. Determinar la temperatura de los productos de combustión, la entropía de los productos y la generación de entropía.

*(Computational Mechanics and Applied Analysis) Kalyan Annamalai, Ishwar K. Puri, Milind A. Jog - Advanced Thermodynamics Engineering-CRC Press (2001))*
{% endhint %}

![](https://thermosuite.com/manual/124/media/image2.png) ![](https://thermosuite.com/manual/124/media/image3.png)

La reacción química del proceso de combustión es:

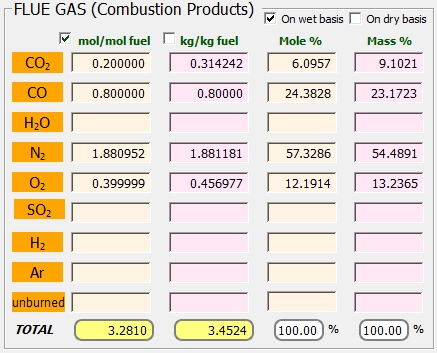

1 CO + 0.5 (O<sub>2</sub> + 3.76 N<sub>2</sub>) -->  **0.2** CO<sub>2</sub> + **0.8** CO + **0.4** O<sub>2</sub> + **1.88** N<sub>2</sub>

![](https://thermosuite.com/manual/124/media/image4.png) ![](https://thermosuite.com/manual/124/media/image5.png)

![Chat o mensaje de](https://thermosuite.com/manual/124/media/image6.png)

![](https://thermosuite.com/manual/124/media/image7.png)

![](https://thermosuite.com/manual/124/media/image8.png)

![](https://thermosuite.com/manual/124/media/image9.png)

![](https://thermosuite.com/manual/124/media/image10.png)

![](https://thermosuite.com/manual/124/media/image11.png) ![](https://thermosuite.com/manual/124/media/image12.png)

![](https://thermosuite.com/manual/124/media/image13.png)

![](https://thermosuite.com/manual/124/media/image14.png)


---
