# Análisis 123: Análisis exergético en cámara de combustión

{% hint style="info" %}
Un combustible está forma por una composición volumétrica siguiente:

* CO: 50%
* N<sub>2</sub>: 40 %
* O<sub>2</sub>: 10 %

Si el coeficiente de exceso de aire es del 20%. Determinar:

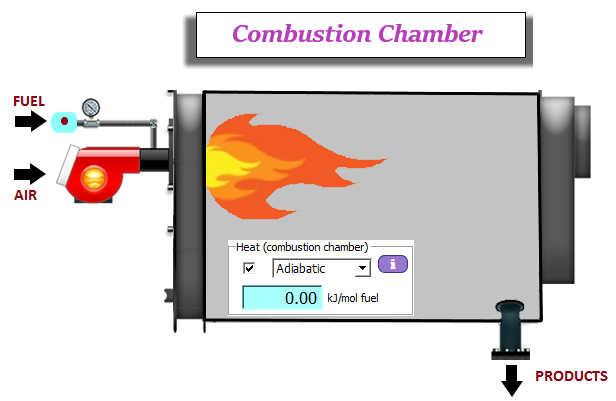

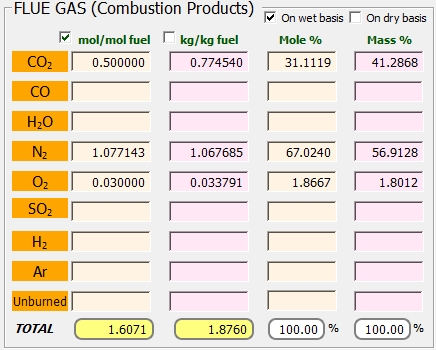

1. Productos de la combustión

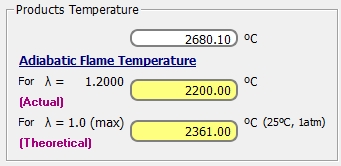

2. Temperatura adiabática de la llama

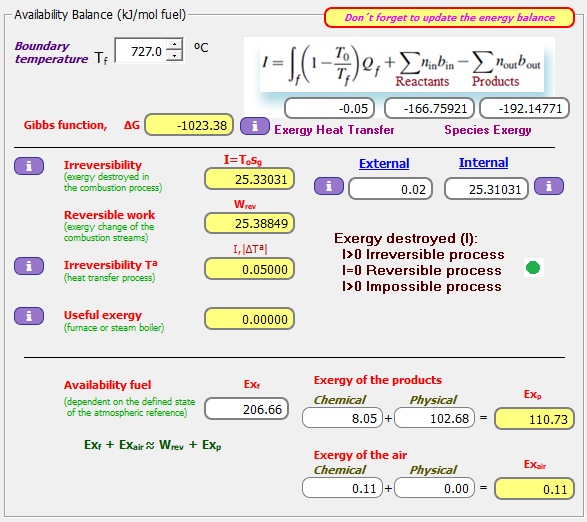

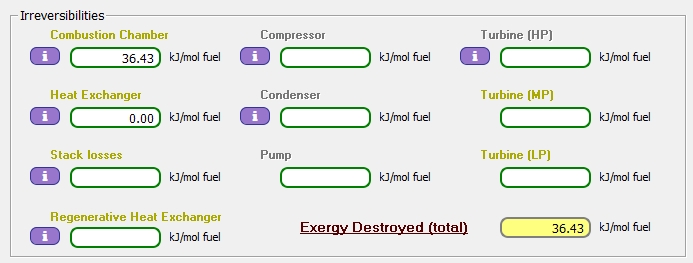

3. Generación de entropía

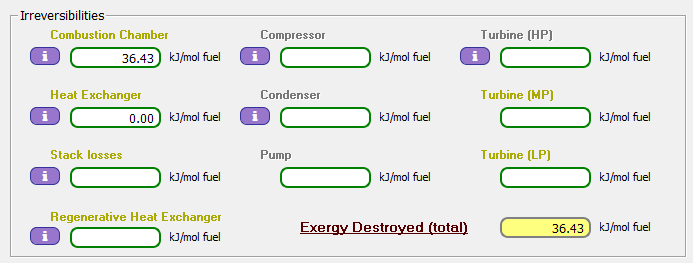

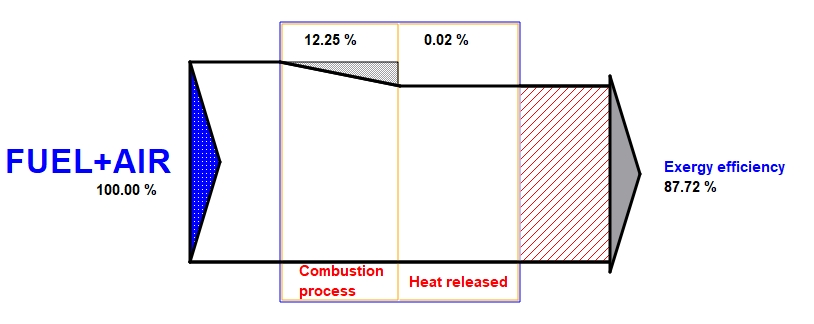

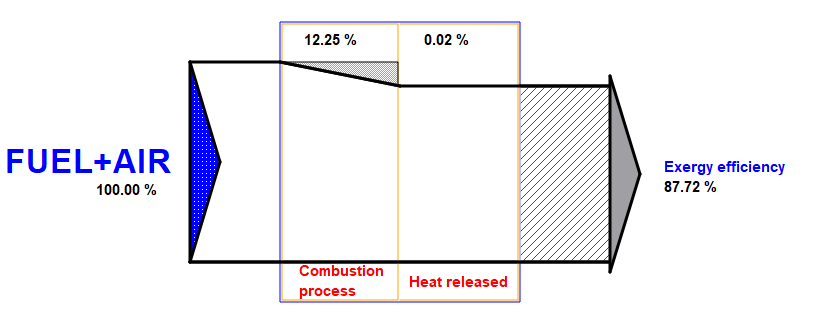

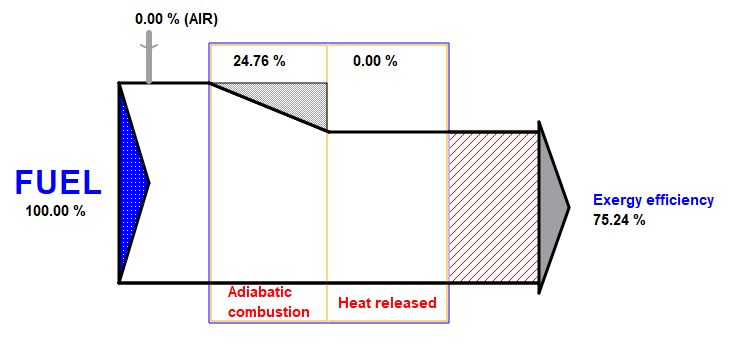

4. Diagrama de Grasssmann
   {% endhint %}

Reacción estequiométrica:

0.5 CO + 0.1 O<sub>2</sub> + 0.4 N<sub>2</sub> + 0.15 (O<sub>2</sub> + 3.76 N<sub>2</sub>) --> 0.5 CO<sub>2</sub> + 0.964 N<sub>2</sub>

Reacción real:

0.5 CO + 0.1 O<sub>2</sub> + 0.4 N<sub>2</sub> + 0.18 (O<sub>2</sub> + 3.762 N<sub>2</sub>) --> **0.5** CO2 + **0.03** O<sub>2</sub> + **1.077** N<sub>2</sub>
