# Análisis 114: Método de la eficiencia de pérdidas (método indirecto)

{% hint style="info" %}
Una mezcla rica (λ=0.325) de metano y aire es combustionada dando la reacción de combustión incompleta siguiente:
{% endhint %}

<figure><img src="https://thermosuite.com/manual/114/media/image1.png" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}

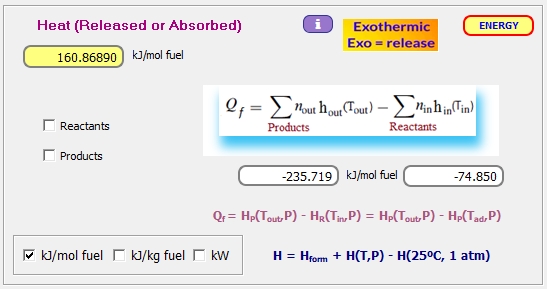

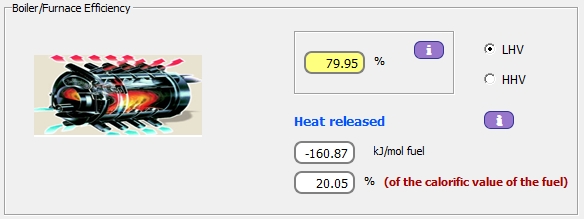

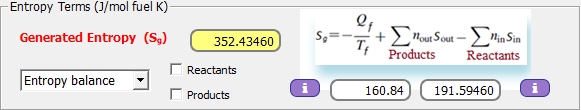

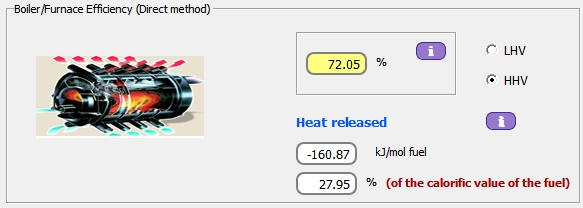

Ajustar los parámetros, y obtener los parámetros más representativos del proceso de combustión.
{% endhint %}

![](https://thermosuite.com/manual/114/media/image3.png) ![](https://thermosuite.com/manual/114/media/image4.png) ![](https://thermosuite.com/manual/114/media/image5.png)

![](https://thermosuite.com/manual/114/media/image6.png)

![](https://thermosuite.com/manual/114/media/image7.png)

![](https://thermosuite.com/manual/114/media/image8.png)

![](https://thermosuite.com/manual/114/media/image9.png)

![](https://thermosuite.com/manual/114/media/image10.png)

![](https://thermosuite.com/manual/114/media/image11.png)

![](https://thermosuite.com/manual/114/media/image12.png)

![](https://thermosuite.com/manual/114/media/image13.png)

![](https://thermosuite.com/manual/114/media/image14.png)

![](https://thermosuite.com/manual/114/media/image15.png)

![](https://thermosuite.com/manual/114/media/image16.png)

![](https://thermosuite.com/manual/114/media/image17.png)

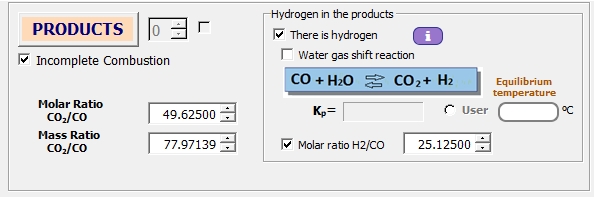

Dado que el coeficiente de exceso de aire es λ<1, algunos de los C e H aparecen necesariamente como CO y H<sub>2</sub> en el gas quemado, teniendo una mezcla rica. El valor calculado de la fracción de masa de la mezcla de productos muestra que hay una cantidad apreciable de inerte, como N<sub>2</sub> y CO<sub>2</sub>, en el gas. Por otro lado, el potencial de combustión puede incrementarse considerablemente cuando el H<sub>2</sub> está presente en cantidades que no exceden el 10 % en el gas, sin riesgo de retroceso en la llama (flashback).

El diagrama de Ostwald es válido cuando no hay inquemados, que no es el caso.


---
