# Análisis 18: Benceno líquido. Combustión incompleta

{% hint style="info" %}

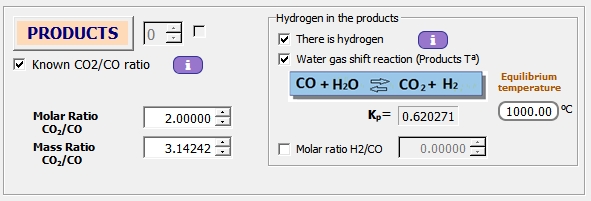

Benceno líquido entra a 25 ºC y 1 bar en una cámara de combustión. Sabiendo que el aire entra en las mismas condiciones (hay defecto de aire del 95 %) y que los productos de la combustión (CO<sub>2</sub>, CO, O<sub>2</sub>, H<sub>2</sub>O, N<sub>2</sub> e H<sub>2</sub>) salen a la temperatura de 1000 ºC. Sabiendo que la relación molar CO<sub>2</sub>/CO=2, y que el caudal de aire es de 20 kg/s, obtener:

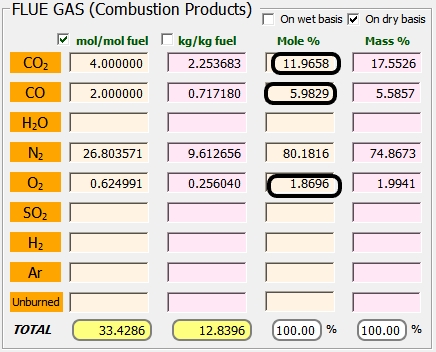

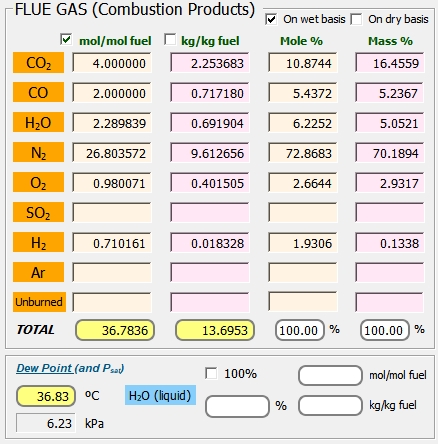

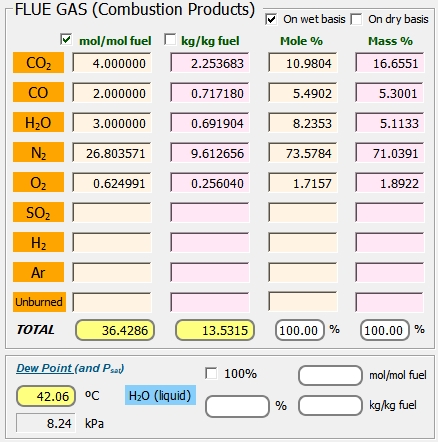

1. Composición de los productos de combustión en base seca y húmeda

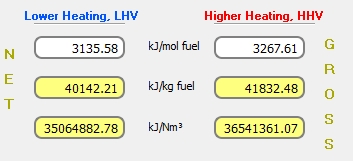

2. Poderes caloríficos superior e inferior a 25 ºC y 1 bar

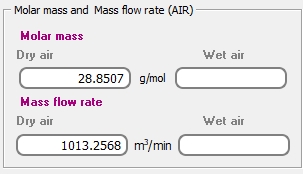

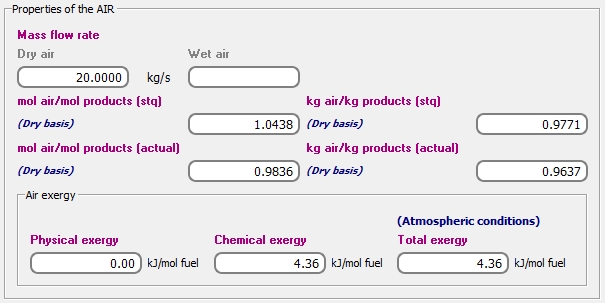

3. Composición del aire en fracción molar y másica

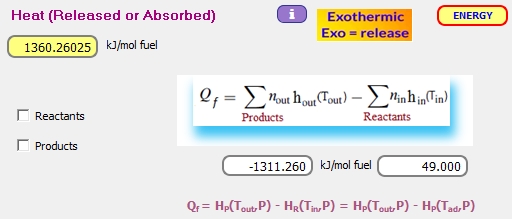

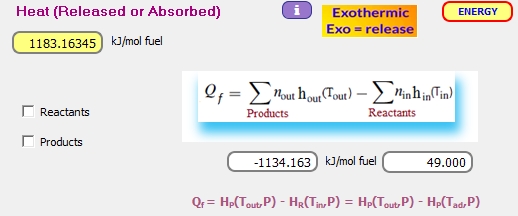

4. El calor cedido al ambiente

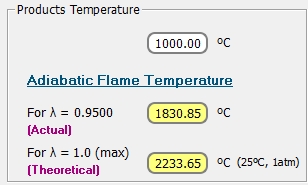

5. Temperatura adiabática de la llama

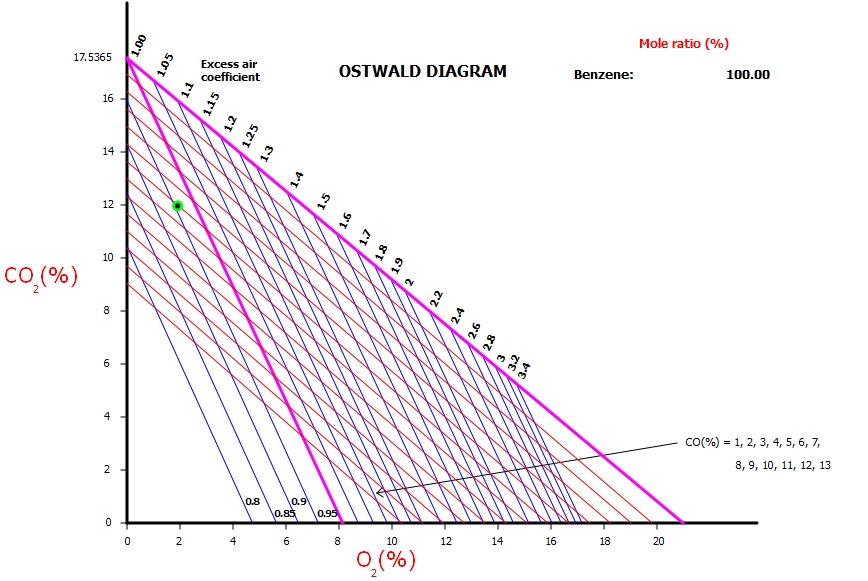

6. Diagrama de Ostwald y Kissel
   {% endhint %}

![](https://thermosuite.com/manual/18/media/image2.png) ![](https://thermosuite.com/manual/18/media/image3.png)

<figure><img src="/files/y7oXntQbej5BGWqSt9TV" alt=""><figcaption></figcaption></figure>

![](https://thermosuite.com/manual/18/media/image4.png) ![](https://thermosuite.com/manual/18/media/image5.png) ![](https://thermosuite.com/manual/18/media/image6.png) ![](https://thermosuite.com/manual/18/media/image7.png)

![](https://thermosuite.com/manual/18/media/image8.png)

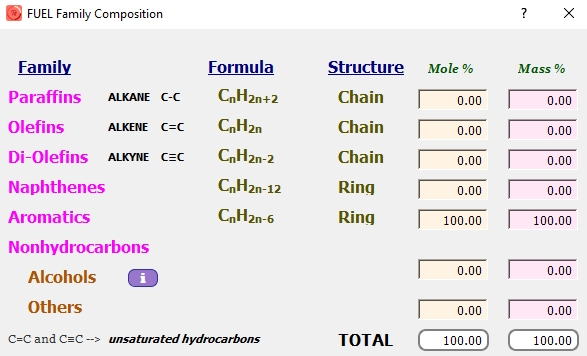

El benceno es un compuesto aromático muy versátil y de mucha importancia en la química ya que de él surgen algunos compuestos derivados del mismo y además es uno de los mejores disolventes para el yodo, azufre, fósforo, gomas, ceras, etc. El poder calorífico de combustión es muy elevado y arde suavemente, por lo tanto su poder antidetonante es considerable como la de sus homólogos, lo que justifica su empleo en la industria de los carburantes para elevar su octanaje.

![](https://thermosuite.com/manual/18/media/image9.png)

![](https://thermosuite.com/manual/18/media/image10.png)

![](https://thermosuite.com/manual/18/media/image11.png)

![](https://thermosuite.com/manual/18/media/image12.png) ![](https://thermosuite.com/manual/18/media/image13.png)

![](https://thermosuite.com/manual/18/media/image14.png)

![](https://thermosuite.com/manual/18/media/image15.png)

![](https://thermosuite.com/manual/18/media/image16.png)

![](https://thermosuite.com/manual/18/media/image17.png)

![](https://thermosuite.com/manual/18/media/image18.png)

![](https://thermosuite.com/manual/18/media/image19.png)

![](https://thermosuite.com/manual/18/media/image20.png)

![](https://thermosuite.com/manual/18/media/image21.png)

![](https://thermosuite.com/manual/18/media/image22.png)

![](https://thermosuite.com/manual/18/media/image23.png)

![](https://thermosuite.com/manual/18/media/image24.png)

![](https://thermosuite.com/manual/18/media/image25.png)

![](https://thermosuite.com/manual/18/media/image26.png)

![](https://thermosuite.com/manual/18/media/image27.png)

![](https://thermosuite.com/manual/18/media/image28.png)

![](https://thermosuite.com/manual/18/media/image29.png)

![](https://thermosuite.com/manual/18/media/image30.png) ![](https://thermosuite.com/manual/18/media/image31.png)

![](https://thermosuite.com/manual/18/media/image32.png)

![](https://thermosuite.com/manual/18/media/image33.png)

![](https://thermosuite.com/manual/18/media/image34.png)

![](https://thermosuite.com/manual/18/media/image35.png)

Eliminando la presencia de hidrógeno:

![](https://thermosuite.com/manual/18/media/image36.png)

![](https://thermosuite.com/manual/18/media/image37.png)

![](https://thermosuite.com/manual/18/media/image38.png)

![](https://thermosuite.com/manual/18/media/image39.png)

![](https://thermosuite.com/manual/18/media/image40.png)

![](https://thermosuite.com/manual/18/media/image41.png)

![](https://thermosuite.com/manual/18/media/image42.png)


---
