# Análisis 103: Diseño de aparatos de gas cuando se prueban diferentes gases

{% hint style="info" %}

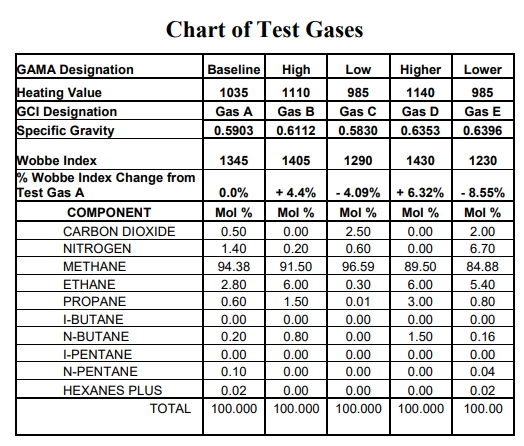

El objetivo de este programa fue investigar el funcionamiento de los diseños actuales de aparatos de gas cuando se prueban en cuatro gases de prueba diferentes que representan posibles mezclas (en volumen) de gases que pueden utilizarse en los Estados Unidos en los próximos años.

* Hacer el estudio para el gas A y el gas E.
  {% endhint %}

![](https://thermosuite.com/manual/103/media/image1.png)

![](https://thermosuite.com/manual/103/media/image2.png)

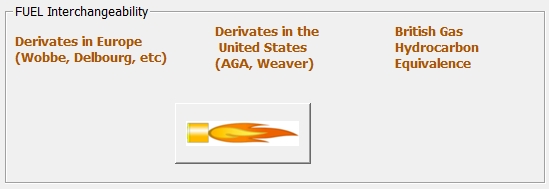

La intercambiabilidad ha sido una preocupación a nivel mundial desde los años 30 y 40, cuando el gas natural reemplazó el uso de los gases manufacturados a partir del carbón y el petróleo, en aplicaciones de iluminación vial y otras aplicaciones domésticas. En la actualidad, los quemadores modernos presentan una alta sensibilidad a la composición del gas y son menos tolerantes a las fluctuaciones de la composición, luego de que el equipo haya sido calibrado para funcionar con una calidad de gas determinada.

<figure><img src="/files/MTSgwcxFkPoNkHuMXWT7" alt=""><figcaption></figcaption></figure>

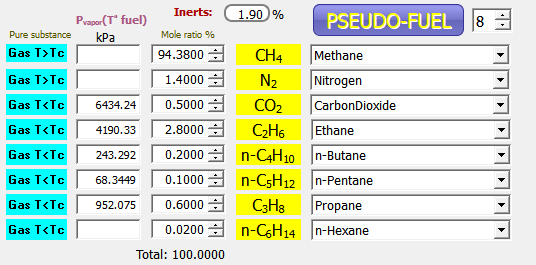

**GAS A**

![](https://thermosuite.com/manual/103/media/image4.png)

![](https://thermosuite.com/manual/103/media/image5.png)

![](https://thermosuite.com/manual/103/media/image6.png)

![PowerPoint Descripción
generada automáticamente](https://thermosuite.com/manual/103/media/image7.png)

![](https://thermosuite.com/manual/103/media/image8.png)

<figure><img src="/files/bYPAQMIGLvPoJUkT8Zft" alt=""><figcaption></figcaption></figure>

![](https://thermosuite.com/manual/103/media/image10.png)

![](https://thermosuite.com/manual/103/media/image11.png)

![](https://thermosuite.com/manual/103/media/image12.png)

![](https://thermosuite.com/manual/103/media/image13.png)

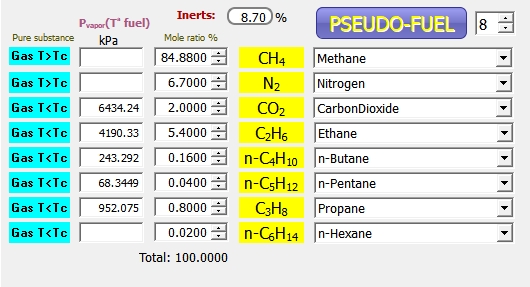

**GAS E**

![](https://thermosuite.com/manual/103/media/image14.png)

![](https://thermosuite.com/manual/103/media/image15.png)

![](https://thermosuite.com/manual/103/media/image16.png)

![PowerPoint Descripción
generada automáticamente](https://thermosuite.com/manual/103/media/image7.png)

![Logotipo, nombre de la empresa Descripción generada automáticamente
con confianza media](https://thermosuite.com/manual/103/media/image17.png)

<figure><img src="/files/wTiNE8Lo9oTYw1n2sndD" alt=""><figcaption></figcaption></figure>

![](https://thermosuite.com/manual/103/media/image18.png)

![](https://thermosuite.com/manual/103/media/image19.png)

![](https://thermosuite.com/manual/103/media/image20.png)

![](https://thermosuite.com/manual/103/media/image21.png)


---
